ACCESSORIES

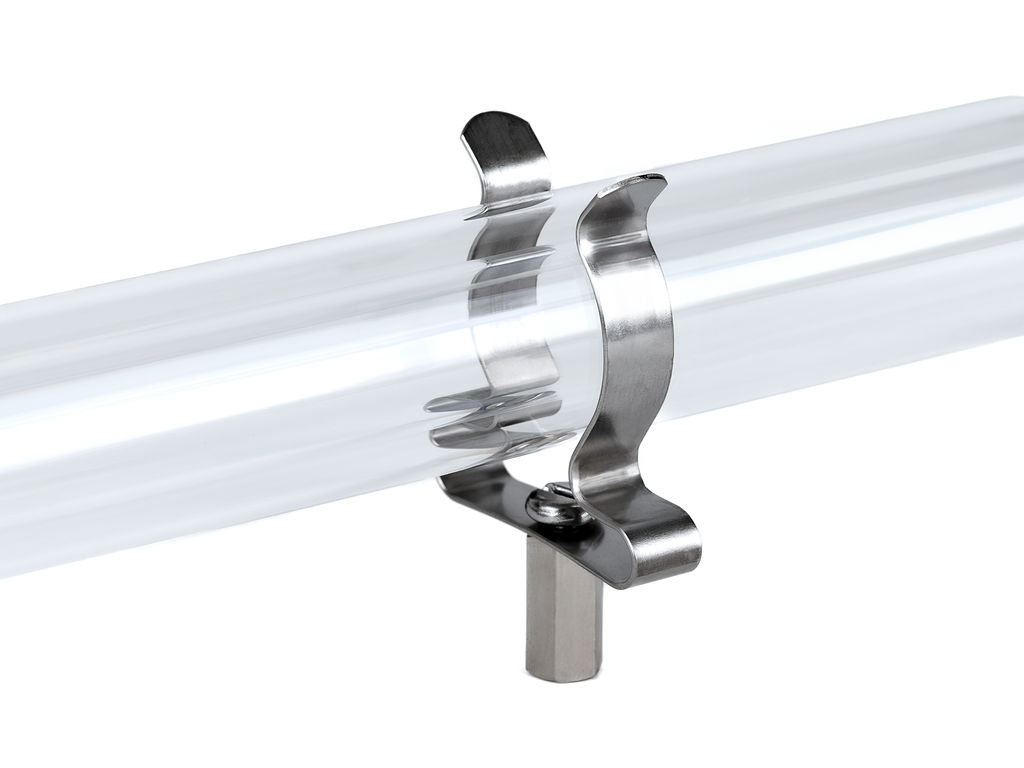

Stainless Steel (AISI 304) lamp clamp to support UVC lamps. One is needed to support a lamp at the middle or end, two clamps are needed to support the lamp if the lamp fitting is not fixed. Only suitable for doublewalled (D) lamps.

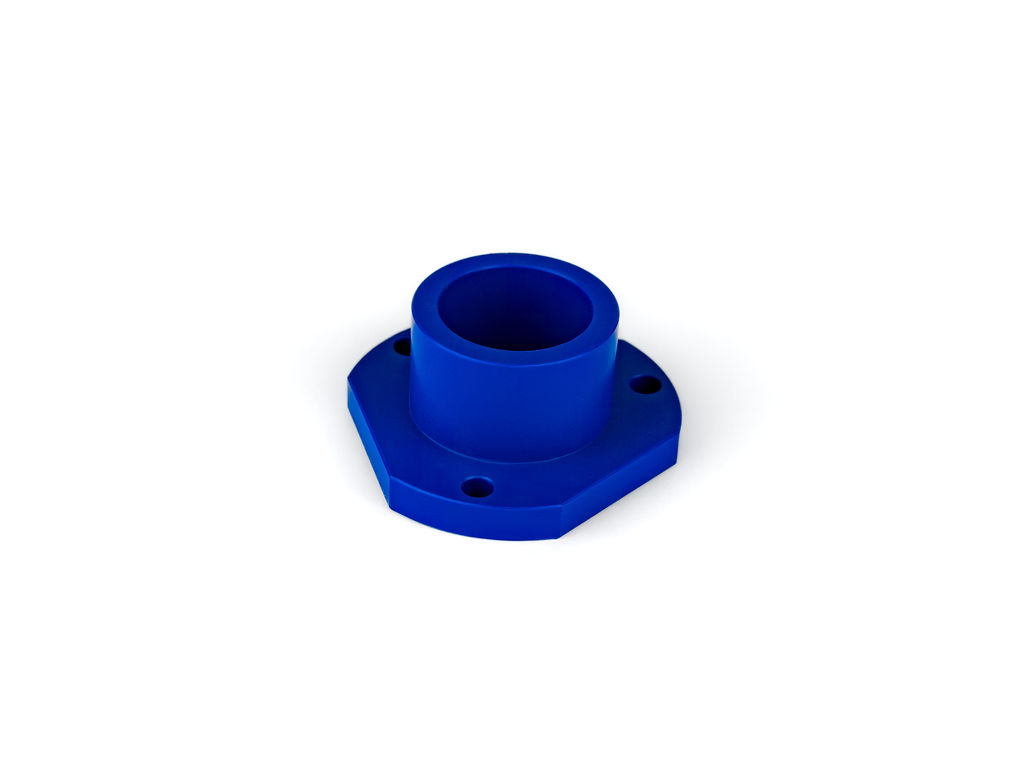

Lamp support for end of lamp mounting in Polyoxymethylene (POM).

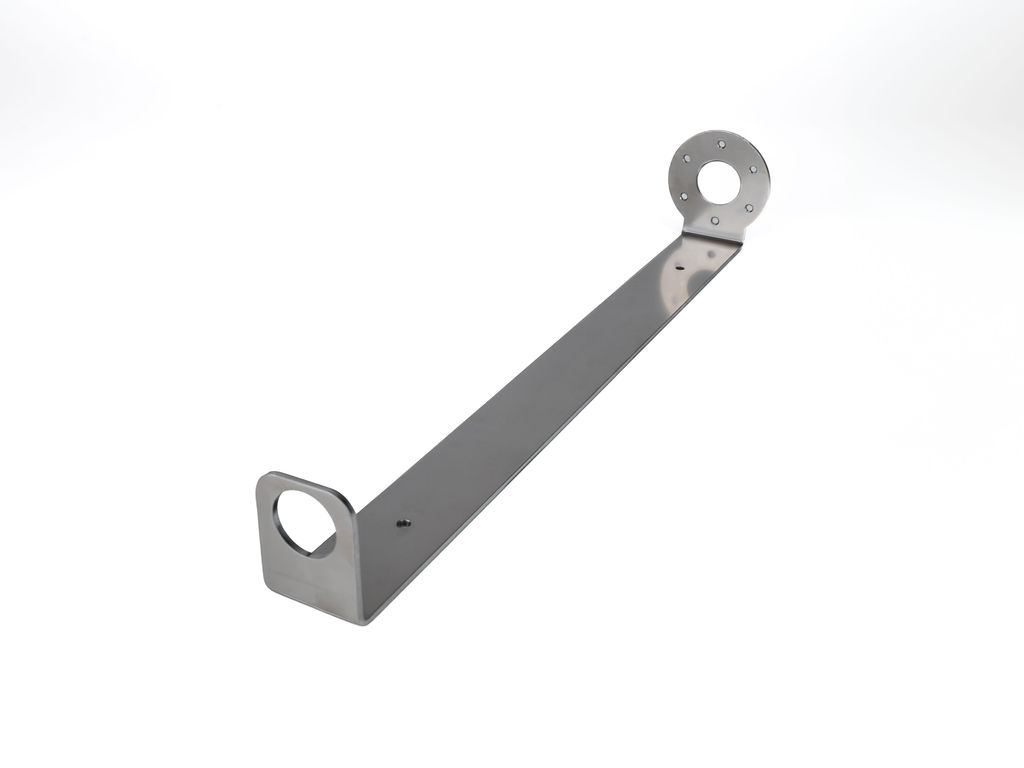

AISI 304 stainless steel lamp support bracket (lamp retainer), with 6 mounting holes, suitable for lamps with a length of 585 to 1,000 mm. Only suitable for double walled (D) lamps.

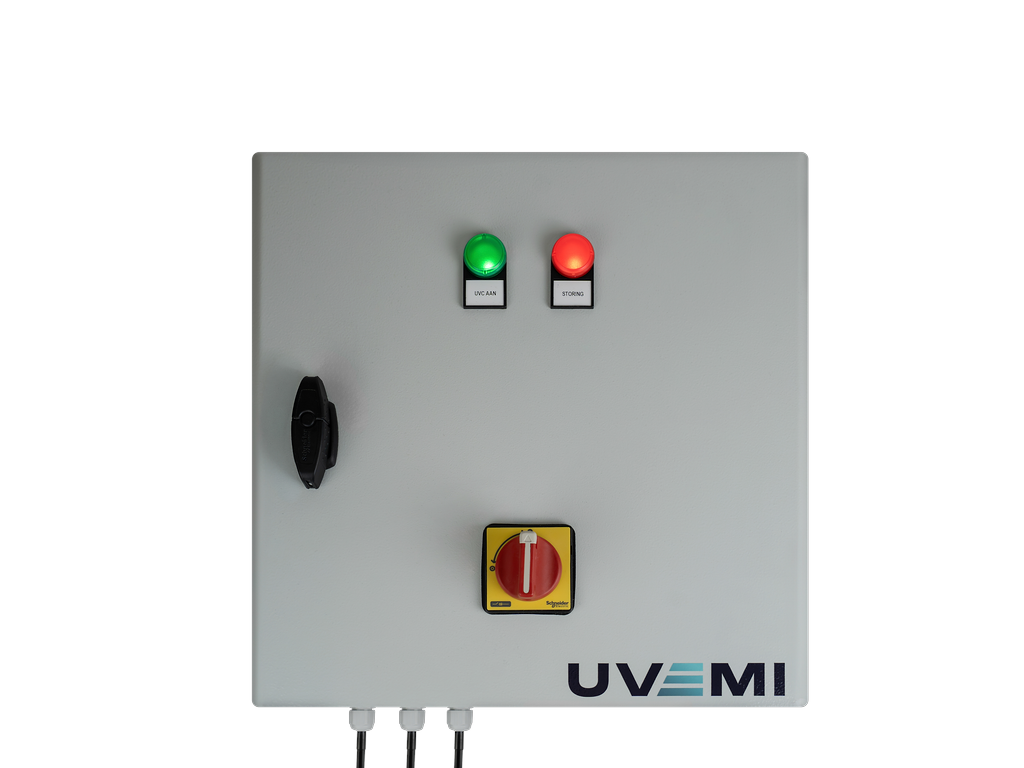

The LC control cabinet is a complete monitoring solution for up to 10 devices with 20 UVC lamps. The system allows for local or remote control and checks the operation of all connected lamps by means of visual signals and a potential free relay for communications with Building Management Systems (BMS). Moreover, it counts operational hours of the lamps and warns at an approaching end of lamp lifetime to guarantee disinfection performance.

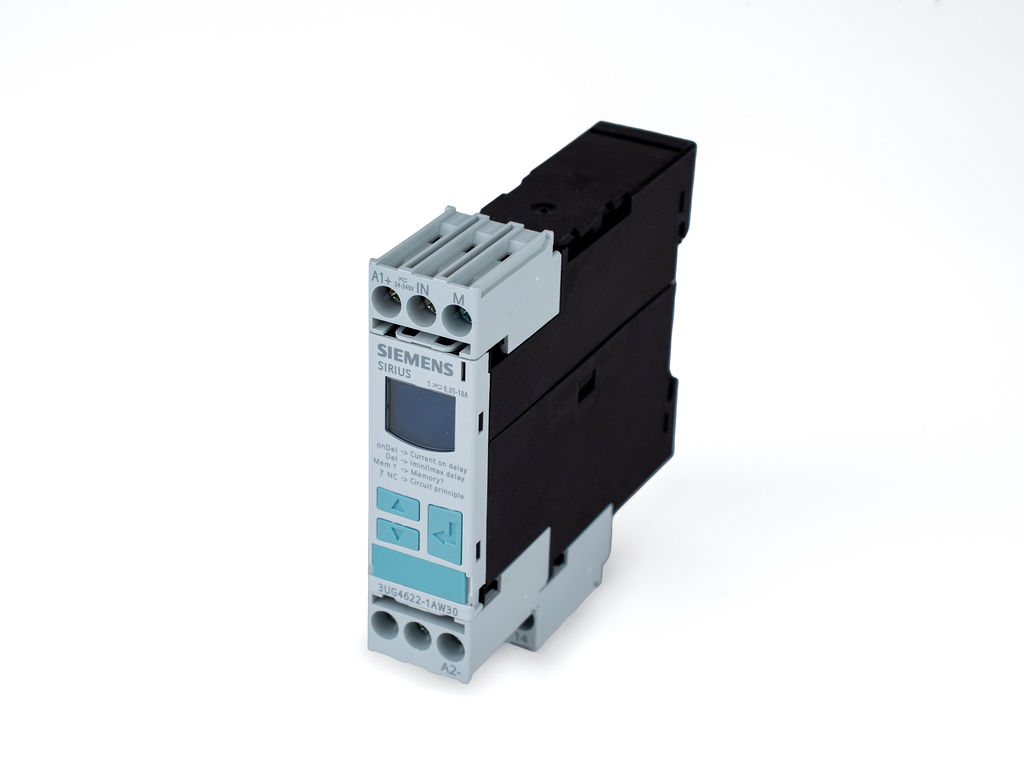

Siemens current monitoring module for UV lamp status monitoring, delivered including user documentation with treshhold data and operating instructions.

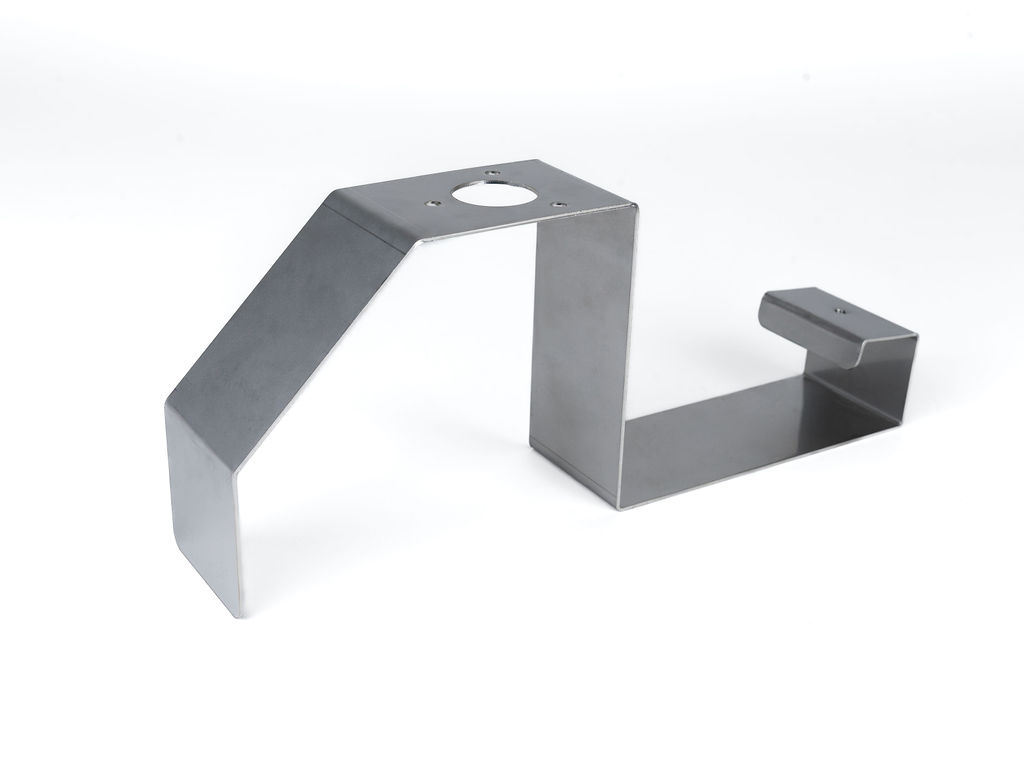

AISI 304 stainless steel mounting bracket / stand for the Hybrid unit, designed to support the lamp in a vertical position. Suitable for use in narrow and deep water tanks or other applications where the lamp must operate as a free-standing vertical assembly.

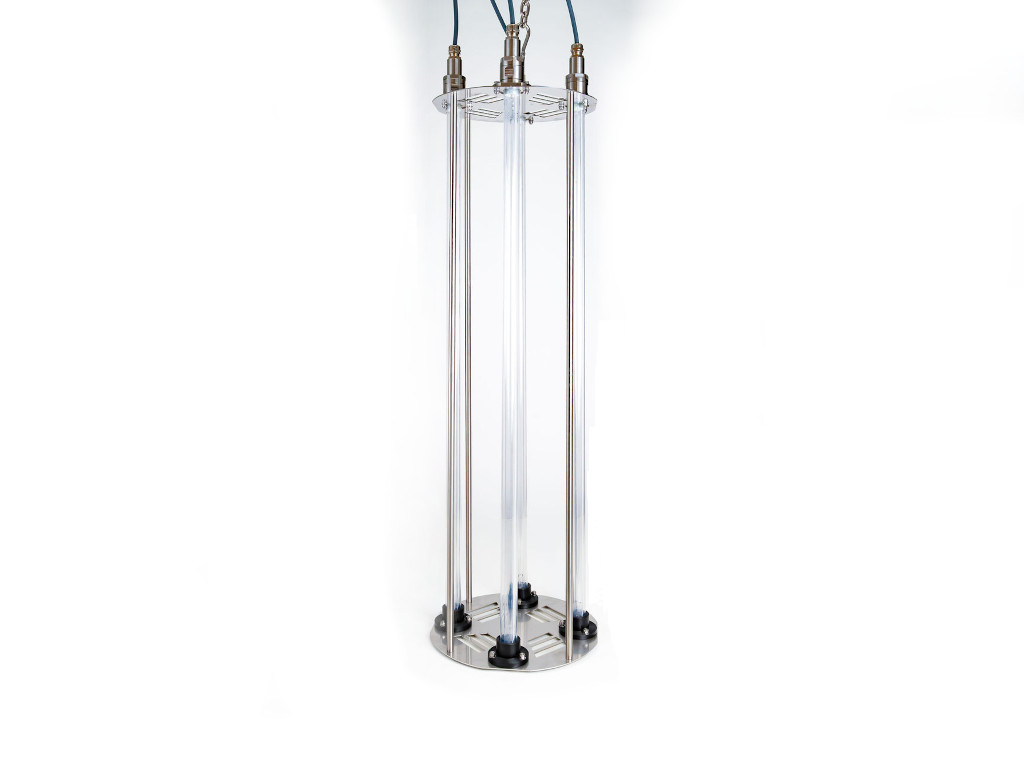

DKU mounting frame for the underwater installation of 2 or 4 UVC lamps (800 mm, 40 W). Suitable for use with 1 or 2 Hybrid units. Constructed from AISI 304 stainless steel and supplied with AISI 316 stainless steel chains and carabiner hooks for secure suspension and positioning.
